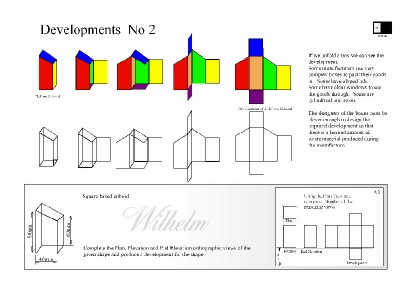

Developments
Basic technique
requires the pupil to
construct an
 orthographic
drawing  of the
Plan Elevation
and End Elevation.
 Each view has to be
numbered. to correlate
with  each other.
 From the views
a surface development is
then  constructed.
